Project: Tree Root-Damaged Sidewalk Repair and NYC Violation Removal
Client: Commercial Property Owner
Location: 326 Atlantic Ave, Brooklyn, NY 11201 (Boerum Hill)
Property Type: Mixed-use commercial and residential building
Services Provided: Tree Root Damage Restoration, Sidewalk Slab Removal and Replacement, Authorized Root Pruning, Root Barrier Installation, Sidewalk Permit Filing, 811 Utility Mark-Out Coordination, NYC Parks Tree Work Permit, LPC Approval and Material-Selection Coordination, Final Violation Sign-Off
Estimated Project Cost: Approximately $5,900, including required permits and approvals
Total Sidewalk Area Repaired: Approximately 250 square feet / 10 concrete slabs
Project Completion Time: Up to approximately 60 days, covering permit coordination, construction, inspection, and final NYC DOT sign-off
The Problem: A Violation Complicated by Foot Traffic and Historic Oversight
Atlantic Avenue doesn't slow down for construction, and this property's sidewalk couldn't wait either. The building at 326 Atlantic Ave sits on one of Boerum Hill's busiest retail and residential corridors, where a mature street tree had spent years pushing its root system beneath the concrete out front. Ten slabs, roughly 250 square feet, had lifted and cracked enough to draw a NYC DOT sidewalk violation.
For a commercial property with steady foot traffic in and out of ground-floor tenants, an uneven sidewalk wasn't just a compliance problem. It was a liability risk sitting a few feet from the front door every single day. And because the address falls within an area subject to Landmarks Preservation Commission oversight, the fix couldn't just be about pouring new concrete fast. Material selection and the repair approach needed sign-off from LPC before work could even begin, on top of the usual DOT and Parks requirements.
Our Approach: Coordinating Three Agencies to Get One Sidewalk Fixed
Getting this violation cleared meant satisfying three different reviewing bodies before a single slab came up. Here's how the project came together.
- LPC Approval and Material Coordination First: Because the property sits in a zone where sidewalk work requires Landmarks Preservation Commission review, we submitted the repair plan and proposed concrete specifications to LPC for approval before scheduling any construction. This step alone can stall a project for weeks if it isn't handled early, so it came before permitting.
- Permits and Mark-Outs Secured: With LPC sign-off in hand, we filed the sidewalk repair permit, coordinated an 811 utility mark-out to confirm what was running beneath the corridor, and secured a NYC Parks Tree Work Permit given the extent of root work needed near the tree pit.
- Slab Removal Across the Violation Zone: The crew removed all 10 damaged slabs across the full 250-square-foot area, exposing the root system that had been driving the heaving rather than patching around it.
- Authorized Root Pruning and Barrier Installation: Licensed root pruning relieved the pressure the roots were putting on the sidewalk without harming the tree. A root barrier went in along the tree-facing edge to steer future growth downward, away from the new concrete.

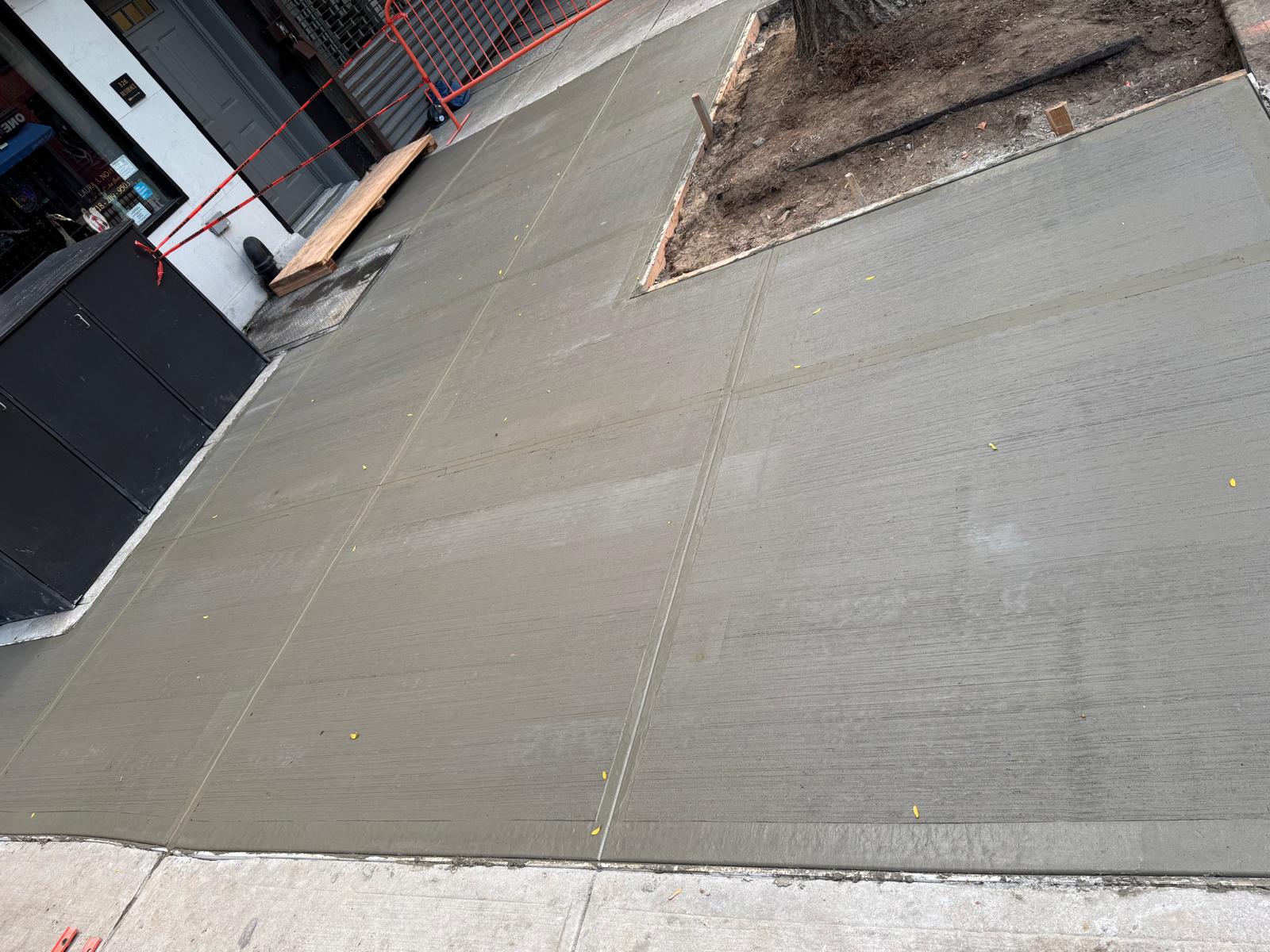

- Rebuilding for a High-Traffic Commercial Corridor: New concrete was poured to DOT slope and flatness standards, with extra attention to a level, even surface given the volume of pedestrian traffic the block sees daily.
- Final Violation Sign-Off: Once the concrete cured, the completed repair was submitted for final NYC DOT sign-off, closing out the violation within the property's correction window.
Final Outcomes
- Removed and replaced 10 sidewalk slabs covering approximately 250 square feet
- Secured LPC approval for repair materials and methods ahead of construction
- Coordinated permits and approvals across NYC DOT, NYC Parks, and LPC
- Completed an 811 utility mark-out before any excavation began
- Performed authorized root pruning and installed a root barrier to prevent repeat heaving
- Rebuilt the sidewalk to DOT-compliant flatness and slope standards for heavy foot traffic
- Cleared the NYC DOT violation with final sign-off, all within about 60 days
Client Feedback
"Between the historic district rules and the DOT violation, we weren't sure how long this would drag on. They got the LPC approval sorted before we even filed for the sidewalk permit, which saved us weeks. Tenants never had to deal with a blocked entrance for more than a few days." (Property Owner, Boerum Hill, Brooklyn)
