Project: Historic Bluestone Sidewalk Restoration and Installation
Client: Residential Property Owner/Historic Cobble Hill Townhouse Owner
Location: 301 Clinton Street, Cobble Hill, Brooklyn, NY
Services Provided: Bluestone Sidewalk Installation, Flag Resetting and Alignment, Base Preparation and Grading, Joint Finishing, Tree Pit Restoration, NYC DOT and LPC Compliance
Estimated Project Cost: $13,440 (384 sq ft at $35/sq ft), plus applicable permit fees
Total Sidewalk Area Repaired: Approximately 384 square feet / 32 bluestone flags (each approximately 3' × 4').
Project Completion Time: Completed within the 75-day correction period specified in the NYC DOT violation notice

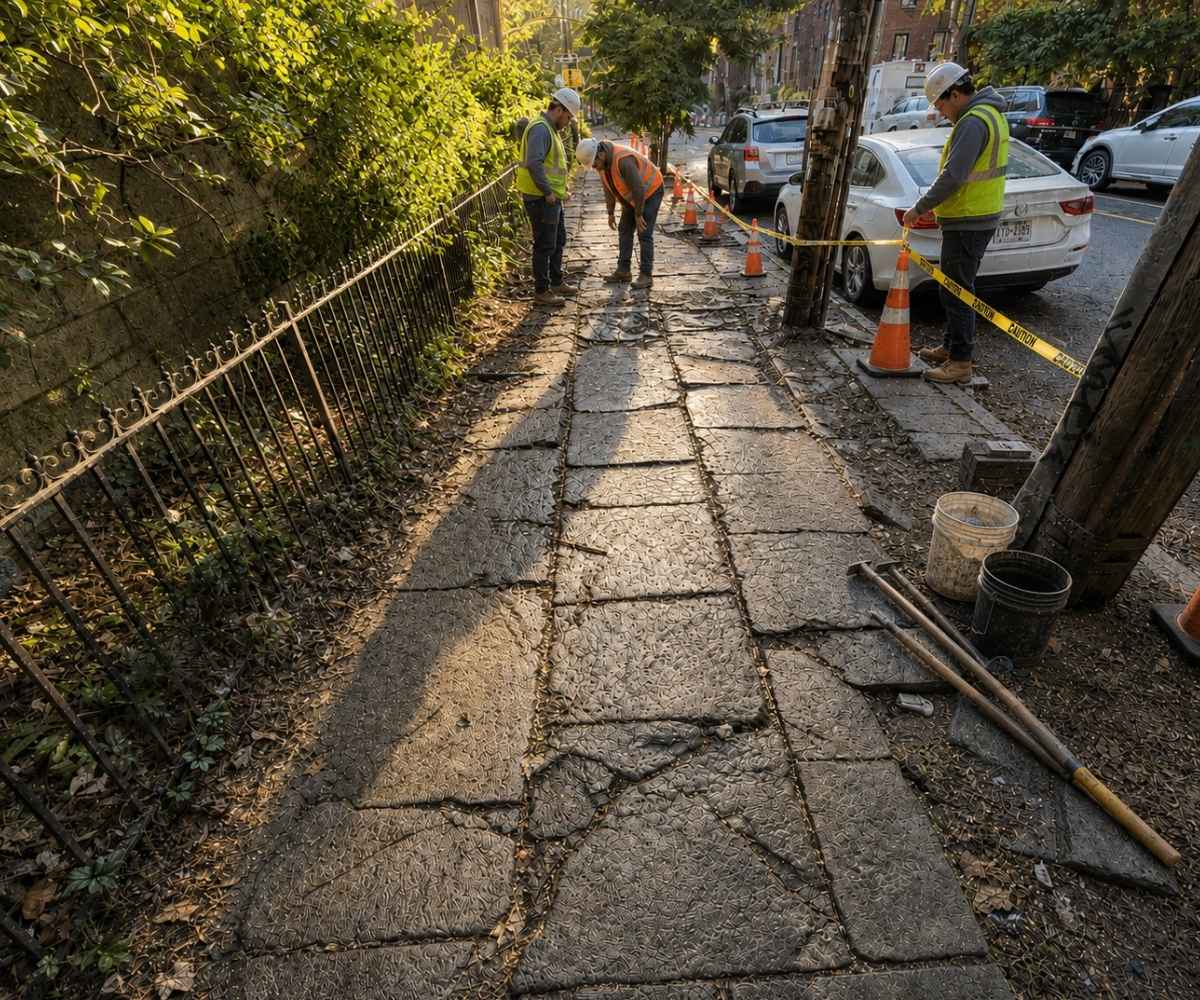

The Problem: An Aging and Uneven Bluestone Sidewalk
The existing sidewalk had deteriorated over time. Several sections showed uneven elevations, worn surfaces, deteriorated joints, cracking, and settlement around individual flags. The mature street tree and surrounding soil conditions also required additional attention when evaluating the sidewalk grade.
These conditions created more than an appearance issue. Differences in elevation between adjoining stones can create an uneven walking surface, while poor drainage and unstable bedding can contribute to continued movement of the bluestone.
Because bluestone consists of individual natural-stone flags rather than one continuous concrete slab, simply patching low or uneven areas would not provide the same long-term result. With a DOT violation notice on file and a 75-day correction window, the repair also had to move on a defined timeline.
Our Approach: Restoring the Sidewalk Without Losing Its Character
The project was approached as a bluestone sidewalk restoration and installation, with particular attention given to maintaining the appearance of the existing streetscape.
The crew first evaluated the individual flags and surrounding elevations to determine which stones could remain and which areas required resetting or replacement. Of the original flags, enough were beyond reset that the project called for 32 new bluestone flags, each approximately 3' x 4', covering approximately 384 square feet and sized and finished to match the surrounding stone.
- Preparing a Stable Base: After the affected paving was removed, the underlying area was prepared and leveled to create a stable, properly graded base. Particular attention was given to elevations around the tree pit, neighboring sidewalk flags, property line, and adjoining paving. This step helps prevent newly installed or reset stones from rocking, settling unevenly, or creating abrupt transitions between flags.
- Installing the Bluestone Flags: Each 3' x 4' stone was individually aligned and adjusted rather than treating the sidewalk like a conventional concrete pour. The crew worked to maintain:
- Consistent elevations between adjoining bluestone flags
- Tight, hand-finished joints
- Appropriate sidewalk pitch for drainage
- Smooth transitions between existing and newly installed flags
- The natural variation in texture and appearance characteristic of bluestone
- Working Around the Existing Street Tree: The sidewalk layout and grading had to account for the existing tree pit and surrounding soil conditions, since movement beneath individual flags can eventually cause stones to become raised or uneven. The finished installation maintains the tree opening while creating a cleaner transition between the tree pit and the surrounding sidewalk.
- Meeting the DOT Timeline: With a 75-day correction period on the violation notice, the project schedule was planned around permitting, base preparation, and flag installation so the work could be completed and signed off within the window set by NYC DOT.

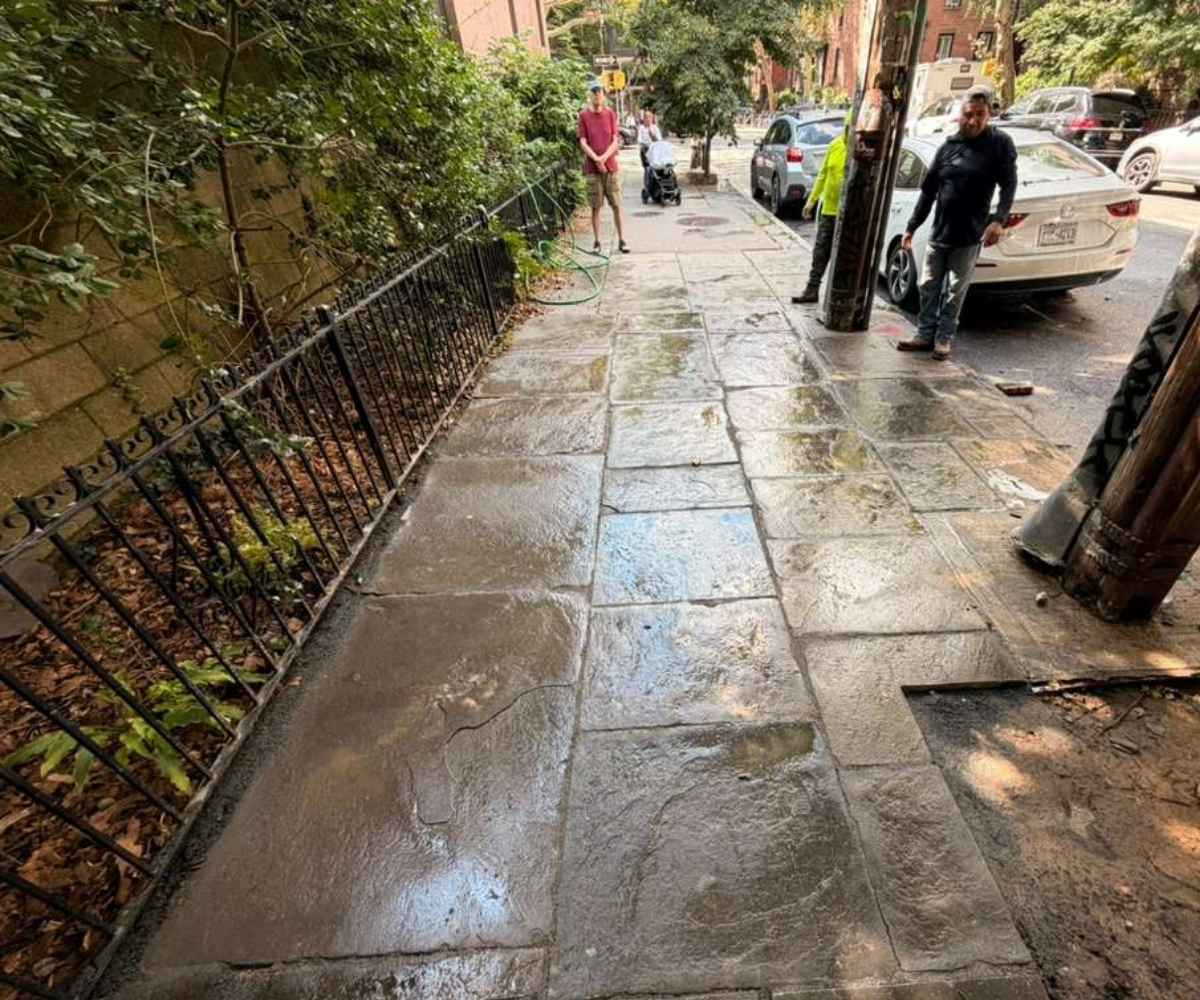

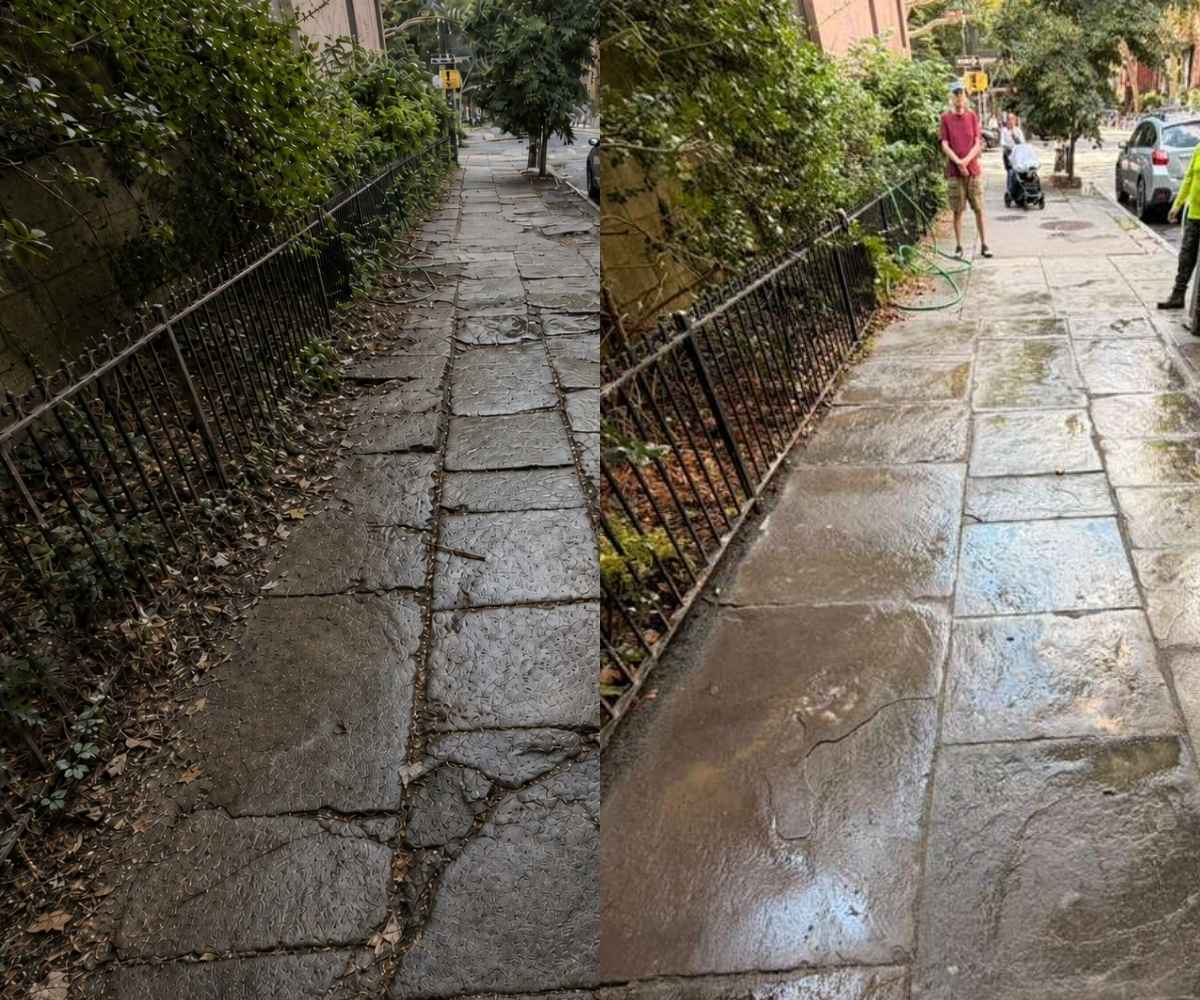

The Results We Delivered
- Installed 32 new bluestone flags (approximately 3' x 4' each), covering approximately 384 square feet
- Eliminated uneven, cracked, and settled sections along the property frontage
- Prepared a stable, properly graded base beneath all new and reset flags
- Maintained tight, hand-finished joints consistent with traditional bluestone installation
- Preserved the tree pit while improving the transition to the surrounding sidewalk
- Completed the project within the 75-day NYC DOT violation correction period
- Restored a walking surface that blends naturally with the historic Cobble Hill streetscape
Client Feedback
"We were worried about losing the character of the block, but they matched the new stone perfectly with what was already there. The whole thing was done well before our deadline." (Property Owner, Cobble Hill, Brooklyn)
